Quicrun WP 8BL150 G2 ESC with Ezrun 4274 G2 Motor Combo

ESC Specifications:

• 150A/950A Sensorless, Sensored Brushless Motor for 1/8 RC.
• Works with 3-6s Lipo.
• BEC Output of 6V/7.4V adjustable, continuous current 6A (switch mode).
• Cooling fan powered by built in BEC.
• Programming port shared with fan port.
• Motor Limit with 4S Lipo: 3000 KV.
• Motor Limit with 6S Lipo: 2400 KV (4274 size motor).

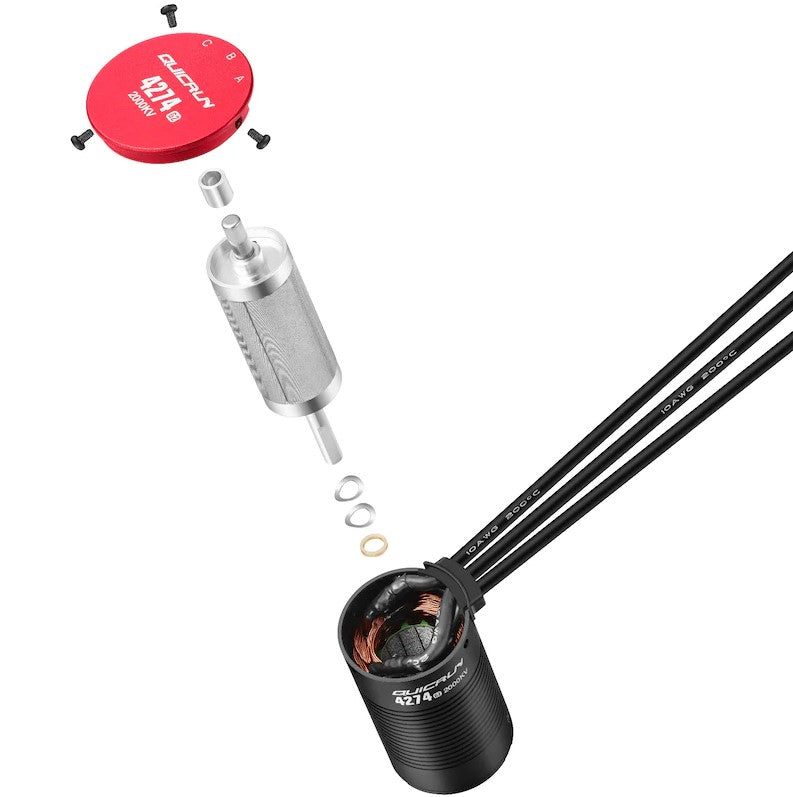

Motor Specifications:

• LiPos: 3-6S
• No-load Current: 5.9A
• Diameter/Length: D-42mm (1.65") L=74.9mm (2.95")
• Shaft Diameter/Length: D-5mm (0.20") L=18.5mm (0.73")
• Bearing Size (mm): Front=D16*D5*T5 Rear=D13*D5*T4
• Poles: 4
• Weight (g): 417g
• Applications: 1/8th Truck, Monster Truck
