Spektrum

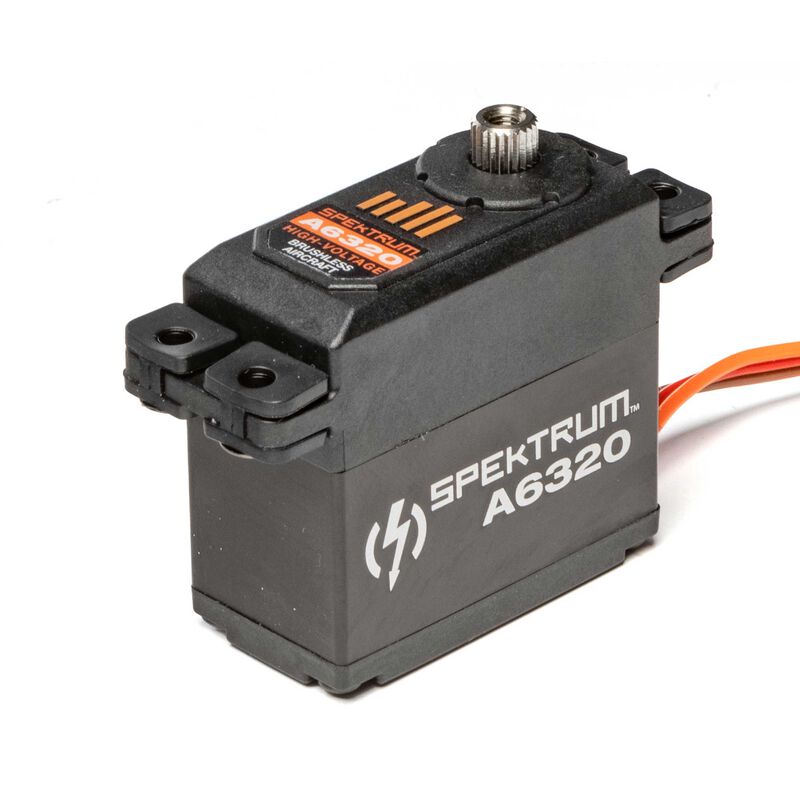

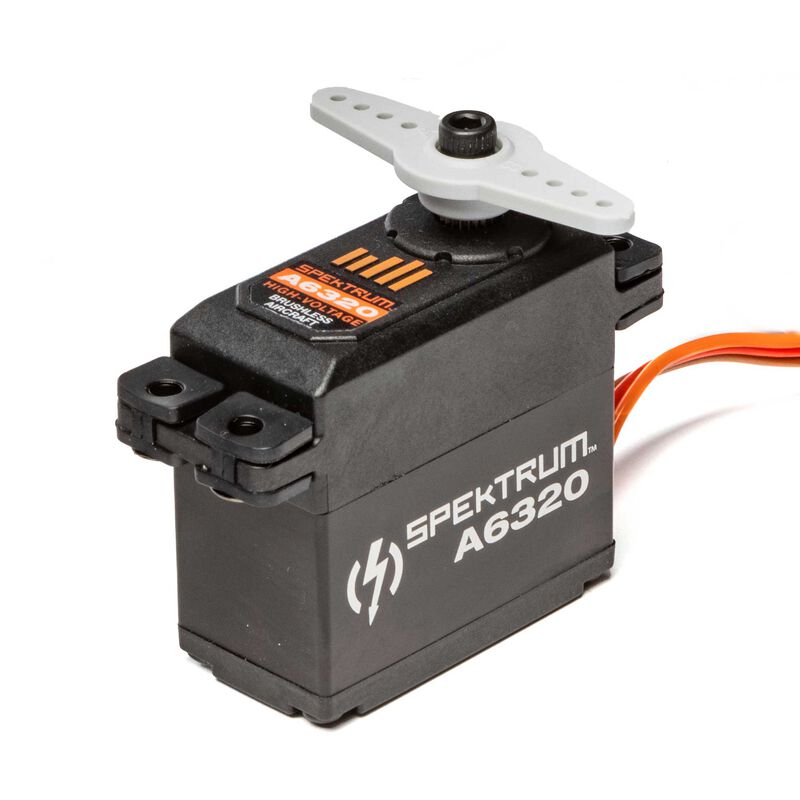

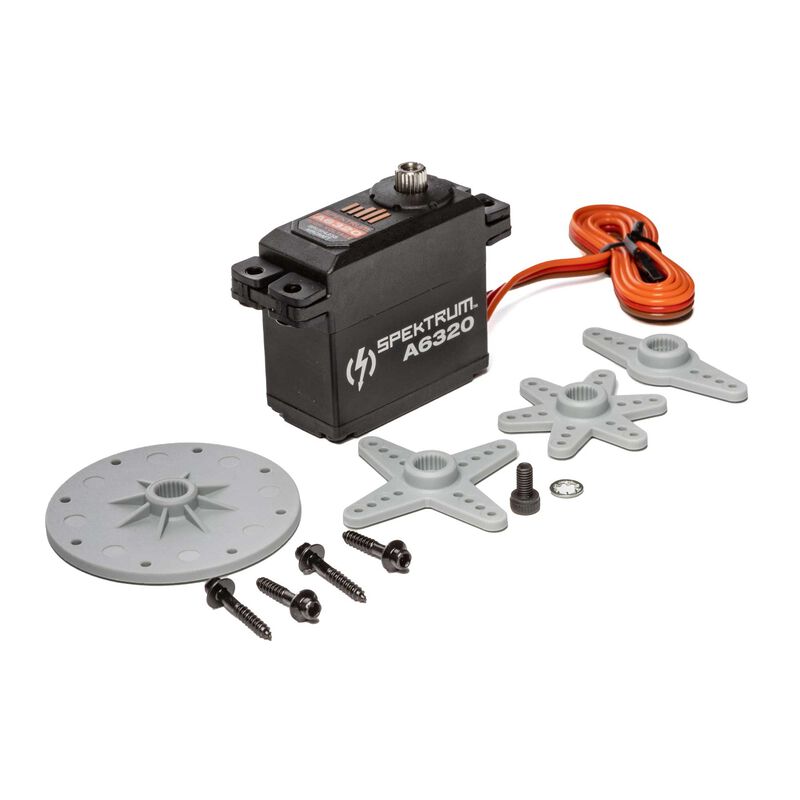

A6320 Standard Digital HV Brushless Mid Torque Metal Gear Aircraft Servo
A6320 Standard Digital HV Brushless Mid Torque Metal Gear Aircraft Servo
SPMSA6320
Regular price
$164.98 CAD
Regular price
Sale price
$164.98 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (270 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum center servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency : 50-400hz
Specifications
Application: Airplane
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Deadband: 3µs
Gear Type: Metal
Maximum Servo Speed: 0.11 sec/60 deg @ 6.0V; 0.10 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
Maximum Servo Torque: 150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V
Motor Type: Brushless
Product Application: Air

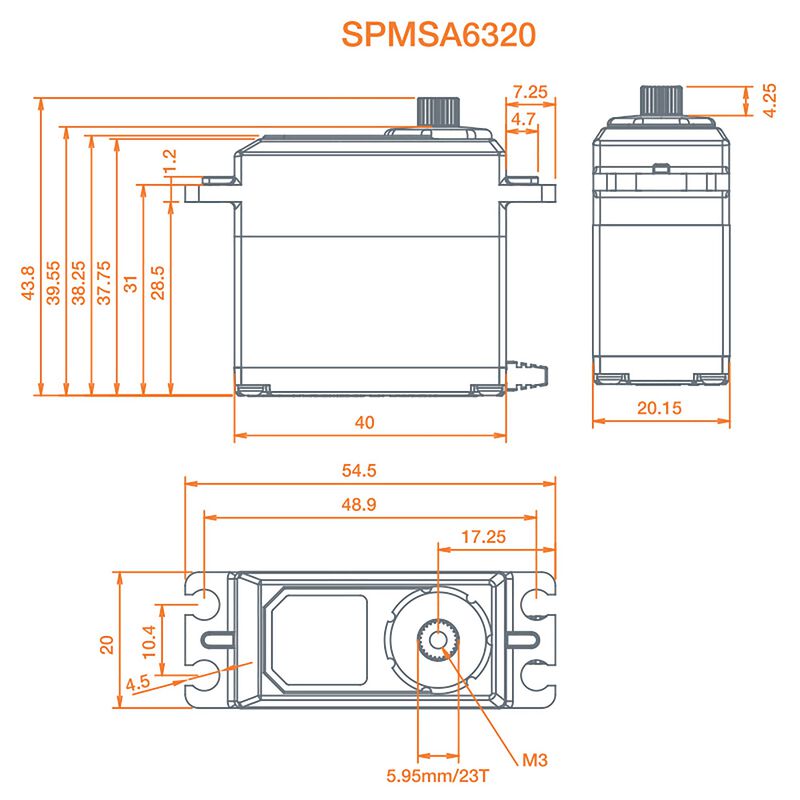

Product Height: 1.49" (38 mm)
Product Length: 1.57" (40 mm)
Product Weight: 2.2 oz (62 g)
Product Width: 0.79" (20 mm)
Programmable: No
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 22 AWG
