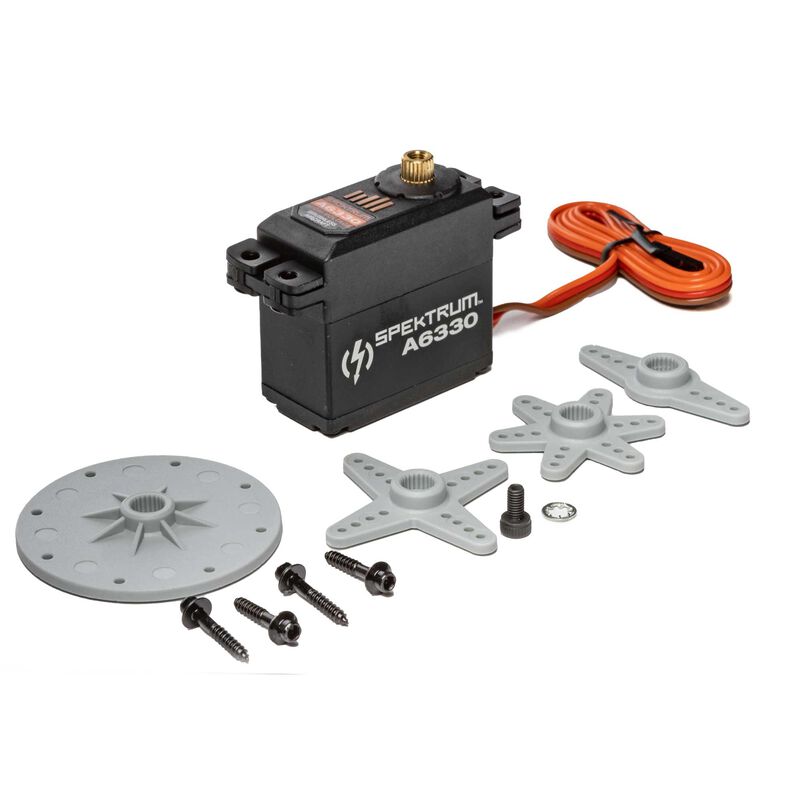

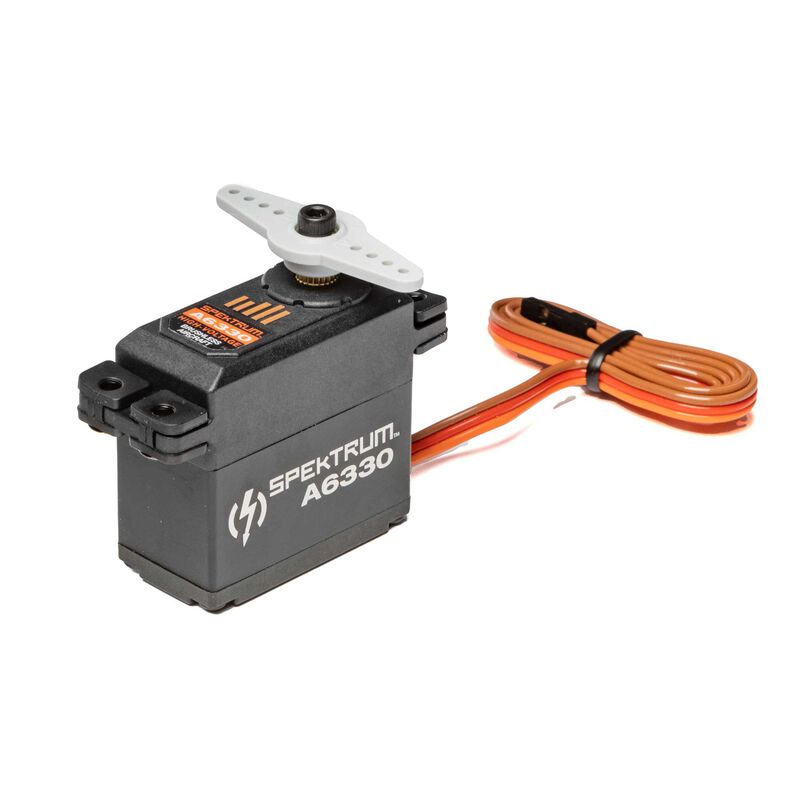

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft.
Features
- Brushless motor provides long lasting durability and impressive power and speed
- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum center servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency : 50-400hz
Specifications
Application: Airplane
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Gear Type: Metal
Input Voltage: 6 - 8.4V
Maximum Servo Speed: 0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
Maximum Servo Torque: 126.6 oz-in (9.11 kg-cm) @ 6.0V; 178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-in (17.86 kg-cm) @ 8.4V
Motor Type: Brushless
Overload Protection: Yes
Product Application: Air

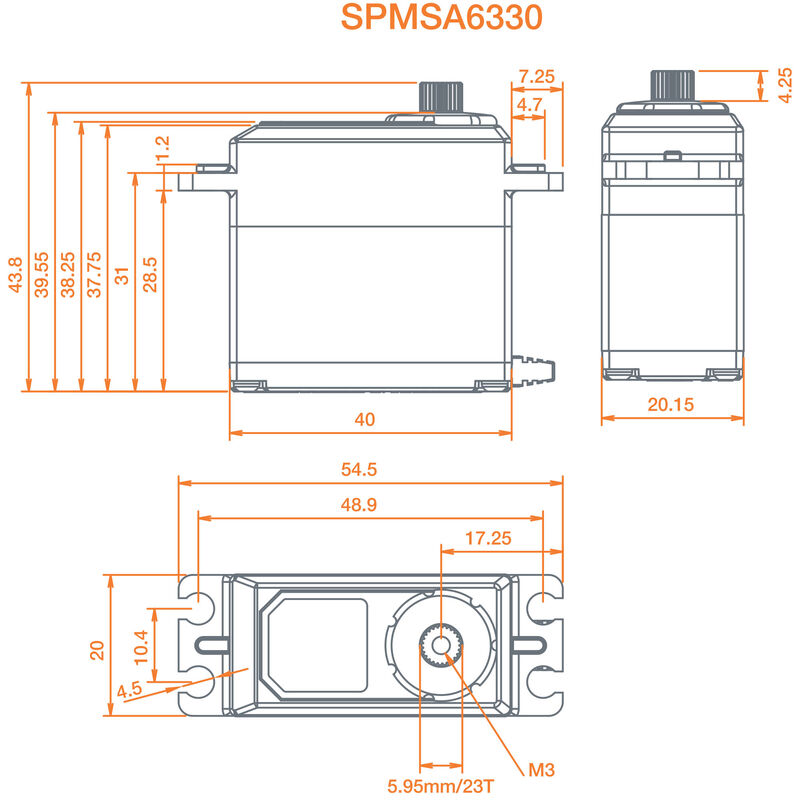

Product Height: 1.56" (40 mm)
Product Length: 1.58" (40 mm)
Product Weight: 2.25oz (71g)
Product Width: 0.79" (20 mm)
Programmable: No
Rotation Range: 120 degree
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 22 AWG
