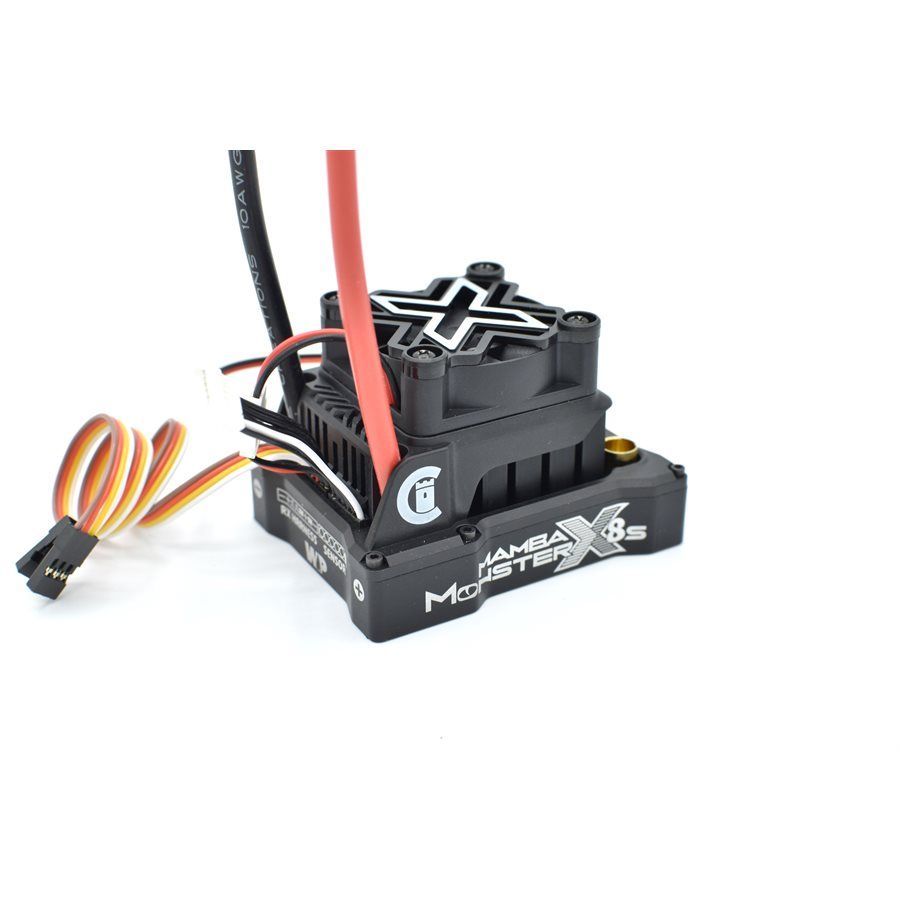

Castle Mamba Monster X 8S, 33.6v ESC, 8A Peak BEC

Castle Mamba Monster X 8S, 33.6v ESC, 8A Peak BEC

CAS010-0165-00

$305.99 CAD
$305.99 CAD
Sale Sold out
Shipping calculated at checkout.

ESC Features

  • Input voltage range 2S-8S LiPo
  • Sensored, Sensorless and SmartSense running modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
  • Oversized factory equipped thermally controlled 40mm fan
  • Waterproof design for all weather conditions.
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
  • Data-logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff.
  • Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake.
  • Easily tune and update ESC with USB and Bluetooth programming options.
    • Castle Link USB programming kit (coupon included with purchase)
      • Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
  • Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations' 1-year warranty
ESC Specifications
Application guidelines: 1/6 scale RC hobby vehicles weighing up to 25 lbs
Running Modes: Sensored, Sensorless and SmartSense™ (when paired with a Castle 4-POLE 12-SLOT sensored motor)
Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo 33.6V
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. Or 8.0V (8A Peak), default 5.5V
Operating environment: Waterproof design enables use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing
On /off switch: Yes, waterproof
Cooling fan: Yes, factory equipped (40mm), fully removable. (See Product Use Statements below)
Size: L x W x H 69.5mm x 54.1mm x 47mm
Weight (w/wires): 5.75 oz. (163 grams)
Connector type: 6.5mm female bullets for motor connection
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements:
  1. Recommended battery capacity for 1/6 scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
  2. Surge ratings should never be used to determine a pack's suitability for a brushless application.
  3. We recommend a high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
  4. Applying voltages higher than 33.6V will cause irreparable damage to ESC.
  5. Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
  6. The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows software, or the Castle Link iOS or Android app with B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX transmitters.
