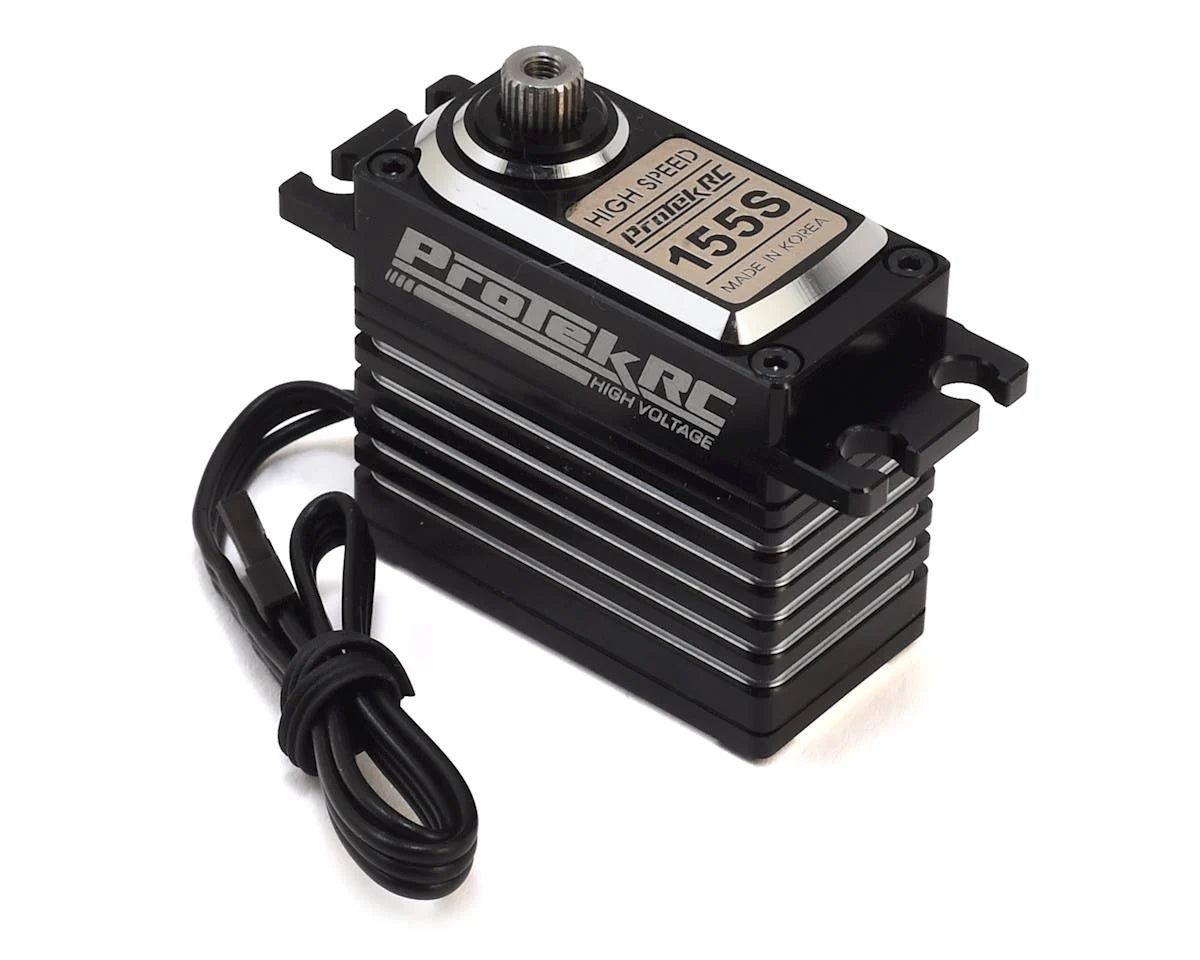

ProTek RC 155S Digital "High Speed" Metal Gear Servo (High Voltage/Metal Case)
ProTek RC 155S Digital "High Speed" Metal Gear Servo (High Voltage/Metal Case)
PTK-155S
Regular price
$195.99 CAD
Regular price
Sale price
$195.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Features:
- Ideal for any 1/10 to 1/8 scale vehicle application
- Conformal coated circuit board
- Full aluminum case
- High voltage circuitry
- 0.08 transit speed, and 308 oz-in of torque @ 6.0V
- 0.06 transit speed, and 370 oz-in of torque @ 7.4V
- Aluminum single arm servo horn
- Full metal gears and dual ball bearings
- 200mm long 22awg connector wire w/gold plated connectors
- Coreless motor
| Servo Model |
155S |
| Recommended Application | 1/10 to 1/8 scale surface |
| Operating Voltage | 4.8V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.08/60° sec |
|
Operating Speed @ 7.4V |
0.06/60° sec |
| Dynamic Torque @ 6.0V |
308 oz-in (21.1 kg-cm) |
|
Dynamic Torque @ 7.4V |
370 oz-in (26.6 kg-cm) |
| Motor Type |
High Efficiency Coreless Motor |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 72.9g |
| Pulse/Frequency |
1520μs / 333hz |
